Container Size:
| L/mm | H/mm | W/mm | L/Ft. | H/Ft. | W/Ft. | Available capacity X1,000 liters |
| 6058 | 2591 | 2438 | 20 | 81/2 | 8 | 13~14.5,16.8~22 |
| 6058 | 2438 | 2438 | 20 | 8 | 8 | 10.5~13 |
| 2991 | 2438 | 2438 | 10 | 8 | 8 | 6.0~7.0 |

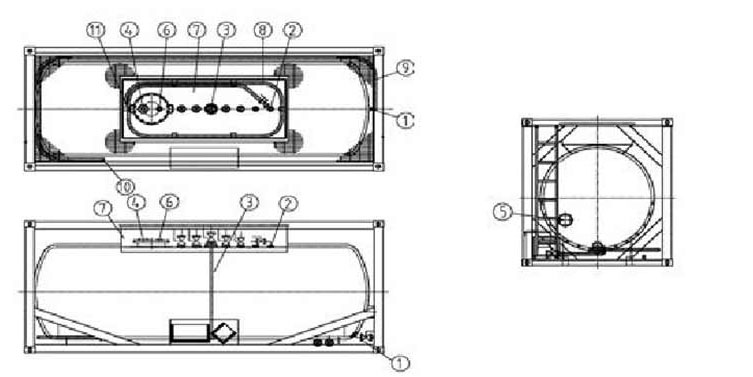

Accessories:
| 1.Liquid Line valve | ☐ball valve | ☐dia. Valve | |
| 2.N2 line valve | ☐ball valve | ☐dia. Valve | |
| 3.Dip tube | ☐ | ||
| 4. Relief valve | ☐ | ||
| 5.Thermometer | ☐ | ||
| 6.Pressure gauge | ☐ | ||
| 7.Hose box | ☐top | ☐side | |
| 8.N2 Flush liquid line hose | ☐ | ||
| 9. Liquid line hose | ☐ | ||
| 10. Liquid Quick connector | |||
| Size: | ☐1 | ☐1 1/2 | ☐2 |
| Material: | ☐SUS316 | ☐PCTFE | ☐PTFE |
| Type: | ☐Socket | ☐Plug with FL'G |
|
| 11.N2 Quick Connector | |||
| Size: | ☐1/2 | ☐3/4 | ☐1 |
| Material: | ☐SUS316 | ☐PCTFE | ☐PTFE |
| Type: | ☐Socket | ☐Plug with FL'G | |
槽车配件

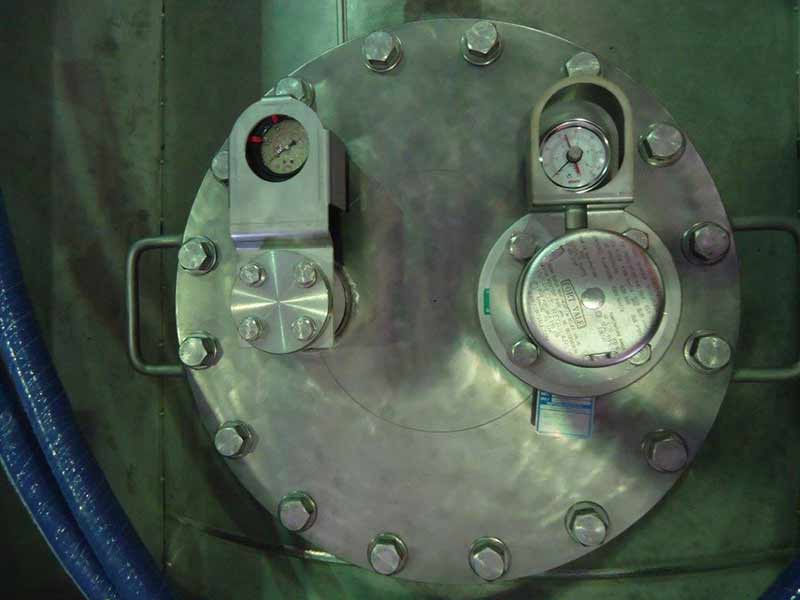

人孔盖、安全阀、爆裂片、压力表
· Pressure Relief Valve：2-1/2”Fort type Set pressure at @20° C atm (+)4.4bar Elfabrupture disc
· Bursting Disc : 2-1/2” Burst Pressure at @20° C atm (+)4.84bar
· Pressure Gauge for Pressure Relief Device : 2-1/2”,Range from 0to 100psi
化液&N2之化学管
· 40A/20A eversupp chemical Hose Rubber covered smooth bore teflonhose
· High purity Teflon tube
· Can be cleaned with steam Non-stick smooth tube Easy to cleanassured sterility Caustics , solvents or other cleaning agents
· Full vacuum rated
· Smooth tube design
· Temperature Rating : -40°C to 180°C
· F.D.A (Food uucl Drug Administration)
阀件/管件
· Ball valve / Diaphragm valve
· Ball valve : SUS304 lined with PFA
· Fitting : SUS304 / 316 lined with PFA
注入管
· Liquid lnlet : 40A SUS304 inner / external lined Teflon
温度计
· Large easily legible display
· High data security
· Measurement data memory for 1millid measurement valves
· Up to 3 year’s battery life
· Date transfer via USB cable or SD card
